K735
Design Introduction
Kintowe K735 is a compact double acting piston seal assembly designed for one piece pistons and suitable for low to high pressure, medium to heavy duty applications. The assembly comprises as standard a self lubricating wear resistant bronze filled or glass/MoS2 filled PTFE cap ring, which is loaded by a NBR energizer . Thermoplastic split anti-extrusion ring support the seal on both sides and prevent contamination of the energizer and cap ring .
Kintowe K735 piston seal is designed to be used in a variety of equipment and is particularly suited to use in earthmoving and other off-highway equipment.
Advantages
● High pressure capability
● Heavy duty
● Low friction
● Long life
● Variety range of material options to extend service temperature range

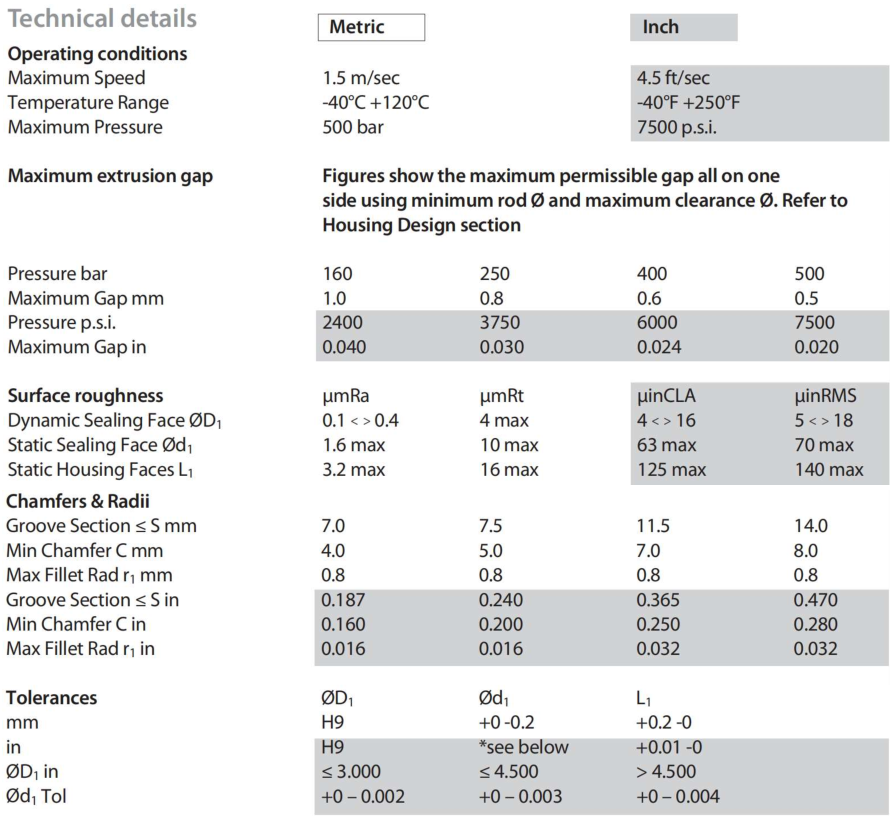

Specification
| ФD1 | Фd1 | L1 | PART No. | ФD1 | Фd1 | L1 | PART No. | |
| 50 | 36 | 9.0 | 7350500 | 165 | 142 | 16.0 | 7351650 | |
| 60 | 46 | 9.0 | 7350600 | 170 | 147 | 16.0 | 7351700 | |
| 63 | 48 | 11.0 | 7350630 | 175 | 152 | 16.0 | 7351750 | |
| 65 | 50 | 11.0 | 7350650 | 180 | 157 | 16.0 | 7351800 | |
| 70 | 55 | 11.0 | 7350700 | 185 | 162 | 16.0 | 7351850 | |
| 75 | 60 | 11.0 | 7350750 | 190 | 167 | 16.0 | 7351900 | |
| 80 | 65 | 11.0 | 7350800 | 200 | 177 | 16.0 | 7352000 | |
| 85 | 70 | 11.0 | 7350850 | 210 | 187 | 16.0 | 7352100 | |
| 90 | 75 | 11.0 | 7350900 | 215 | 192 | 16.0 | 7352150 | |
| 95 | 80 | 11.0 | 7350950 | 220 | 197 | 16.0 | 7352200 | |
| 100 | 85 | 12.5 | 7351000 | 225 | 202 | 16.0 | 7352250 | |
| 105 | 90 | 12.5 | 7351050 | 230 | 207 | 16.0 | 7352300 | |
| 110 | 95 | 12.5 | 7351100 | 240 | 217 | 16.0 | 7352400 | |
| 115 | 100 | 12.5 | 7351150 | 250 | 222 | 17.5 | 7352500 | |
| 120 | 105 | 12.5 | 7351200 | 260 | 232 | 17.5 | 7352600 | |
| 125 | 102 | 16.0 | 7351250 | 270 | 242 | 17.5 | 7352700 | |
| 130 | 107 | 16.0 | 7351300 | 280 | 252 | 17.5 | 7352800 | |
| 135 | 112 | 16.0 | 7351350 | 290 | 262 | 17.5 | 7352900 | |
| 140 | 117 | 16.0 | 7351400 | 300 | 272 | 17.5 | 7353000 | |
| 145 | 122 | 16.0 | 7351450 | 320 | 292 | 17.5 | 7353200 | |
| 150 | 127 | 16.0 | 7351500 | 330 | 302 | 17.5 | 7353300 | |
| 160 | 137 | 16.0 | 7351600 | 350 | 322 | 17.5 | 7353500 | |
| 400 | 372 | 17.5 | 7354000 |
