Single Acting Piston Seals
K606
Design Introduction
Kintowe K606 is an asymmetric piston seal designed to offer effective bore sealing in a wide variety of applications.
The outer dynamic lip is shorter and more robust to provide improved sealing and compression set characteristics over conventional Y rings.
The seal can be used by itself as a single acting seal or fitted back to back in separate grooves for double acting applications.
Manufactured in Kintowe’s high performance polyurethane Kintowe?01, The kintowe K606 provides the following benefits:
Advantages
●Excellent wear resistance
●Strong extrusion resistance, long using life
●Easy installation
●Wide temperature range

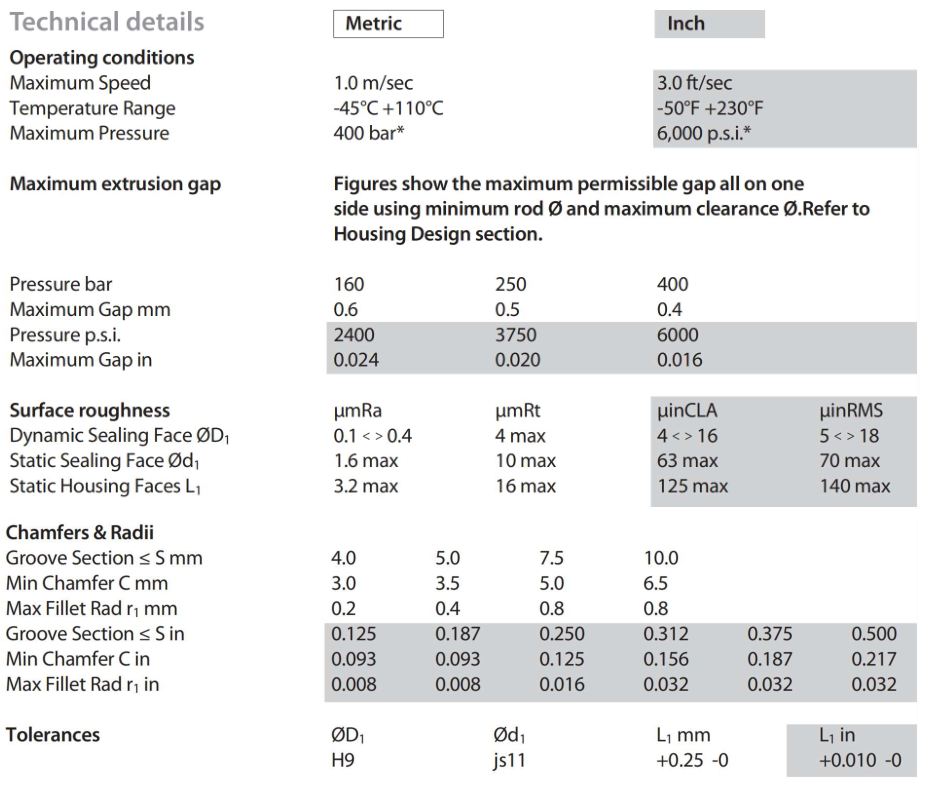

Specification
| Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
| 16 | 10 | 5.7 | 6.3 | 6060160 | 75 | 67 | 8.8 | 9.7 | 6060750 | |
| 25 | 15 | 8.2 | 9.0 | 6060250 | 80 | 65 | 9.0 | 10.0 | 6060800 | |
| 25 | 17 | 5.7 | 6.3 | 6060251 | 80 | 65 | 11.4 | 12.5 | 6060801 | |
| 30 | 20 | 8.0 | 9.0 | 6060300 | 80 | 70 | 6.0 | 7.0 | 6060802 | |
| 32 | 24 | 5.7 | 6.3 | 6060320 | 80 | 70 | 6.8 | 7.5 | 6060803 | |
| 35 | 25 | 7.3 | 8.0 | 6060350 | 80 | 70 | 8.0 | 9.0 | 6060804 | |
| 37 | 21 | 11.8 | 13.0 | 6060370 | 85 | 75 | 8.1 | 9.0 | 6060850 | |
| 38 | 31 | 5.2 | 6.0 | 6060380 | 90 | 75 | 9.0 | 10.0 | 6060901 | |
| 40 | 28 | 9.0 | 10.0 | 6060400 | 90 | 80 | 11.0 | 12.0 | 6060900 | |
| 40 | 30 | 7.3 | 8.0 | 6060401 | 95 | 80 | 9.0 | 10.0 | 6060950 | |
| 40 | 30 | 10.0 | 11.0 | 6060402 | 100 | 85 | 9.0 | 10.0 | 6061000 | |
| 45 | 35 | 7.3 | 8.0 | 6060450 | 100 | 85 | 11.4 | 12.5 | 6061001 | |
| 50 | 39 | 3.8 | 4.2 | 6060500 | 100 | 90 | 6.8 | 7.5 | 6061002 | |
| 50 | 40 | 7.8 | 8.0 | 6060501 | 110 | 100 | 8.0 | 9.0 | 6061100 | |
| 50 | 45 | 7.3 | 8.0 | 6060502 | 120 | 105 | 9.0 | 10.0 | 6061200 | |
| 55 | 45 | 6.0 | 7.0 | 6060550 | 125 | 105 | 14.5 | 16.0 | 6061250 | |
| 60 | 45 | 10.0 | 11.0 | 6060600 | 125 | 110 | 9.0 | 10.0 | 6061251 | |
| 60 | 50 | 9.0 | 10.0 | 6060601 | 150 | 140 | 13.6 | 15.0 | 6061500 | |
| 63 | 48 | 11.4 | 12.5 | 6060630 | 160 | 140 | 14.5 | 16.0 | 6061600 | |
| 63 | 53 | 6.0 | 7.0 | 6060631 | 160 | 140 | 18.2 | 20.0 | 6061601 | |
| 63 | 53 | 7.3 | 8.0 | 6060632 | 170 | 150 | 15.0 | 16.5 | 6061700 | |
| 63 | 53 | 11.8 | 13.0 | 6060633 | 180 | 160 | 15.0 | 16.5 | 6061800 | |
| 65 | 55 | 7.3 | 8.0 | 6060650 | 180 | 164 | 18.0 | 19.0 | 6061801 | |
| 70 | 55 | 10.0 | 11.0 | 6060700 | 190 | 170 | 15.0 | 16.5 | 6061900 | |
| 70 | 60 | 6.0 | 7.0 | 6060701 | 200 | 180 | 14.5 | 16 | 6062000 | |
| 70 | 60 | 8.1 | 9.0 | 6060702 | 280 | 260 | 15.5 | 17 | 6062800 | |
| 70 | 61 | 6.0 | 7.0 | 6060703 |
