Single Lip Rod Seals
K673
Design Introduction
Kintowe 673 is an asymmetric seal offering superlative dry rod sealing for medium and heavy duty applications.
The seal is a single lip design and is ideal for applications which require a double lip wiper such as the Kintowe K864 or K839.
Manufactured in Kintowe ?05, the Kintowe K673 is an extremely flexible seal making installation very easy. The Kintowe K673 is also available in Kintowe ?01.
Advantages
● Easy installation
● Dry rod sealing performance when used with Kintowe K864 or K839 wipers

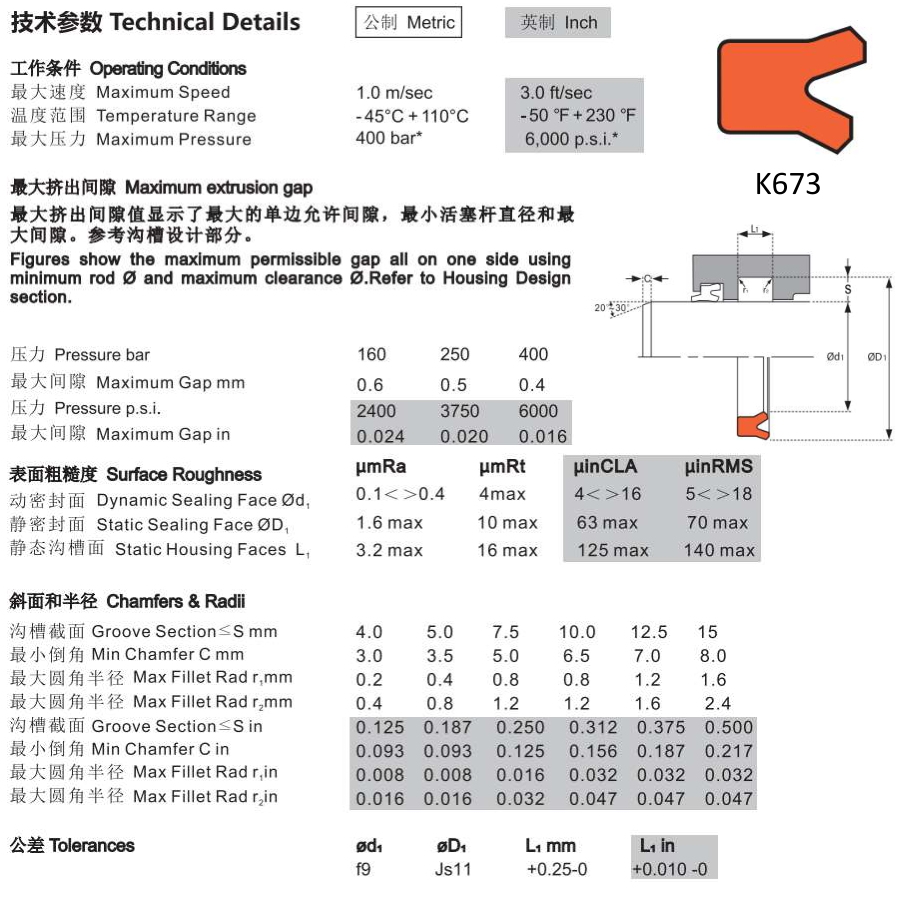

Specification
| Фd1 | ФD1 | SL | L1 | PART No. | Фd1 | ФD1 | SL | L1 | PART No. | |
| 30 | 43 | 10.0 | 11.0 | 6730300 | 70 | 85 | 9.0 | 10.0 | 6730701 | |
| 30 | 45 | 10.0 | 11.0 | 6730301 | 75 | 88 | 10.0 | 11.0 | 6730750 | |
| 32 | 42 | 6.0 | 7.0 | 6730320 | 75 | 90 | 9.0 | 10.0 | 6730751 | |
| 35 | 45 | 6.0 | 7.0 | 6730350 | 75 | 90 | 10.0 | 11.0 | 6730752 | |
| 35 | 50 | 10.0 | 11.0 | 6730351 | 80 | 93 | 10.0 | 11.0 | 6730800 | |
| 40 | 50 | 6.0 | 7.0 | 6730400 | 80 | 95 | 9.0 | 10.0 | 6730801 | |
| 40 | 50 | 9.0 | 10.0 | 6730401 | 80 | 95 | 10.0 | 11.0 | 6730802 | |
| 40 | 55 | 6.0 | 7.0 | 6730402 | 80 | 100 | 12.0 | 13.0 | 6730803 | |
| 40 | 55 | 10.0 | 11.0 | 6730403 | 85 | 100 | 9.0 | 10.0 | 6730850 | |
| 50 | 60 | 8.0 | 9.0 | 6730500 | 85 | 100 | 10.0 | 11.0 | 6730851 | |
| 50 | 63 | 9.0 | 10.0 | 6730501 | 85 | 105 | 12.0 | 13.0 | 6730852 | |
| 50 | 65 | 8.0 | 9.0 | 6730502 | 90 | 105 | 9.0 | 10.0 | 6730900 | |
| 50 | 65 | 10.0 | 11.0 | 6730503 | 90 | 105 | 10.0 | 11.0 | 6730901 | |
| 55 | 68 | 10.0 | 11.0 | 6730550 | 90 | 110 | 12.0 | 13.0 | 6730902 | |
| 55 | 70 | 9.0 | 10.0 | 6730551 | 95 | 110 | 9.0 | 10.0 | 6730950 | |
| 60 | 73 | 10.0 | 11.0 | 6730600 | 95 | 110 | 10.0 | 11.0 | 6730951 | |
| 60 | 75 | 9.0 | 10.0 | 6730601 | 95 | 115 | 12.0 | 13.0 | 6730952 | |
| 60 | 75 | 10.0 | 11.0 | 6730602 | 100 | 115 | 9.0 | 10.0 | 6731000 | |
| 60 | 78 | 10.0 | 11.0 | 6730603 | 100 | 115 | 10.0 | 11.0 | 6731001 | |
| 65 | 80 | 9.0 | 10.0 | 6730650 | 100 | 120 | 12.0 | 13.0 | 6731002 | |
| 65 | 80 | 10.0 | 11.0 | 6730651 | 135 | 145 | 6 | 7 | 67313500 | |
| 70 | 83 | 10.0 | 11.0 | 6730700 | 135 | 150 | 9 | 10 | 67313501 |
