Wipers
K038
Design Introduction
Kintowe K038 has been designed so that the proportions of the wiping lip ensure it maintains contact with the rod surface to remove heavily deposited mud, ice etc . The outside diameter contacts the housing and has a sealing lip to prevent moisture entering the groove .
A polyester based material is used to provide a tough abrasion resistant wiper for the difficult conditions usually found in mining or earth moving applications . All the range can be used with a split housing , however , the majority can be installed in a blind housing with care .
Kintowe K038 is manufactured by high performance polyurethane Kintowe?06, It provides the following benefits.
Advantages
● Outside lip for effective housing seal
● Pressure relief ribs
● Effective scrapinglip

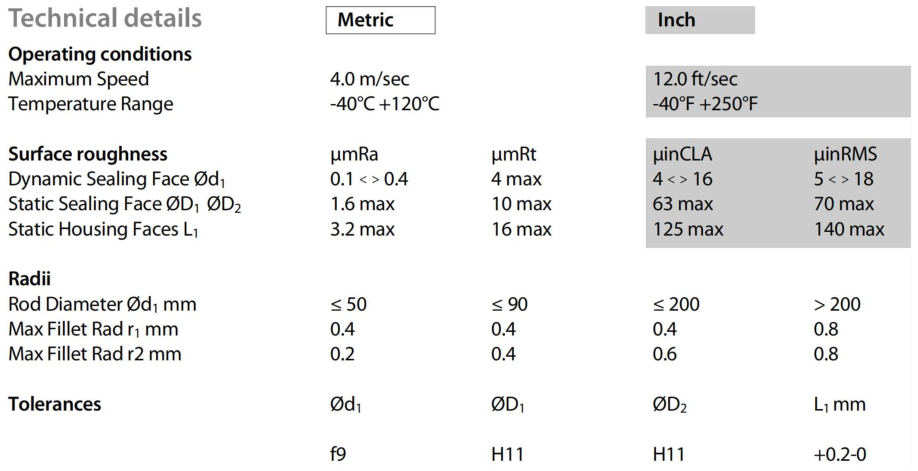

Specification
| Фd1 | ФD1 | ФD2 | L1 | L2 | PART No. | Фd1 | ФD1 | SL | L1 | L2 | PART No. | |
| 18 | 24 | 21.0 | 5.0 | 7.0 | K0380180 | 63 | 73 | 70.0 | 6.3 | 10.0 | K0380630 | |
| 20 | 28 | 25.5 | 5.0 | 8.0 | K0380200 | 63 | 73.6 | 66.0 | 5.3 | 7.0 | K0380631 | |
| 22 | 30 | 27.5 | 5.0 | 8.0 | K0380220 | 65 | 75 | 72.0 | 6.3 | 10.0 | K0380650 | |
| 25 | 33 | 30.5 | 5.0 | 8.0 | K0380250 | 65 | 75.6 | 68.0 | 5.3 | 7.0 | K0380651 | |
| 28 | 36 | 33.5 | 5.0 | 8.0 | K0380280 | 70 | 80 | 77.0 | 6.3 | 10.0 | K0380700 | |
| 30 | 38 | 35.5 | 5.0 | 8.0 | K0380300 | 70 | 80.6 | 73.0 | 5.3 | 7.0 | K0380701 | |
| 30 | 41.2 | 37.0 | 7.5 | 10.0 | K0380301 | 70 | 82.2 | 76.0 | 7.2 | 12.0 | K0380702 | |
| 32 | 40 | 37.5 | 5.0 | 8.0 | K0380320 | 75 | 83.6 | 78.0 | 5.3 | 7.0 | K0380750 | |
| 32 | 44 | 37.5 | 7.0 | 10.0 | K0380321 | 75 | 85 | 82.0 | 6.3 | 10.0 | K0380751 | |
| 35 | 43 | 40.5 | 5.0 | 8.0 | K0380350 | 75 | 87.2 | 81.0 | 7.2 | 12.0 | K0380752 | |
| 35 | 47 | 41.0 | 7.0 | 10.0 | K0380351 | 80 | 90 | 87.0 | 6.3 | 10.0 | K0380800 | |
| 36 | 44 | 41.5 | 5.0 | 8.0 | K0380360 | 80 | 91 | 85.0 | 7.5 | 11.0 | K0380801 | |
| 40 | 48 | 45.5 | 5.0 | 8.0 | K0380400 | 80 | 92.2 | 86.0 | 7.2 | 12.0 | K0380802 | |
| 40 | 50.6 | 43.0 | 5.3 | 7.0 | K0380401 | 85 | 93.6 | 88.0 | 5.3 | 7.0 | K0380850 | |
| 45 | 53 | 50.5 | 5.0 | 8.0 | K0380450 | 85 | 97.2 | 91.0 | 7.2 | 12.0 | K0380851 | |
| 45 | 57 | 51.0 | 5.0 | 7.0 | K0380451 | 85 | 98 | 92.0 | 7.5 | 11.5 | K0380852 | |
| 45 | 57 | 51.0 | 7.0 | 10.0 | K0380452 | 88 | 100.2 | 94.0 | 7.2 | 12.0 | K0380880 | |
| 50 | 58 | 55.5 | 5.0 | 8.0 | K0380500 | 90 | 100 | 97.0 | 6.3 | 10.0 | K0380900 | |
| 50 | 58.6 | 53.0 | 5.3 | 7.0 | K0380501 | 90 | 102.2 | 96.0 | 7.2 | 12.0 | K0380901 | |
| 50 | 60.6 | 53.0 | 5.3 | 7.0 | K0380502 | 95 | 107.5 | 101 | 7.2 | 12 | K0380950 | |
| 55 | 65.6 | 58.0 | 5.3 | 7.0 | K0380550 | 100 | 110.6 | 104 | 5.3 | 7 | K0381000 | |
| 56 | 66 | 63.0 | 6.3 | 10.0 | K0380560 | 100 | 112.2 | 106 | 7.2 | 12 | K0381001 | |
| 56 | 66.6 | 59.0 | 5.3 | 7.0 | K0380561 | 100 | 115 | 110 | 9.5 | 14 | K0381002 | |
| 60 | 70 | 67.0 | 6.3 | 10.0 | K0380600 | 105 | 113 | 110.5 | 5 | 8 | K0381050 | |
| 60 | 70.6 | 63.0 | 5.3 | 7.0 | K0380601 | 105 | 120 | 112 | 7.2 | 12 | K0381051 |
| Фd1 | ФD1 | ФD2 | L1 | L2 | PART No. | Фd1 | ФD1 | ФD2 | L1 | L2 | PART No. | |
| 110 | 122.2 | 116 | 7.2 | 12 | K0381100 | 160 | 172.2 | 166 | 7.7 | 12 | K0381600 | |
| 110 | 125 | 120 | 9.5 | 14 | K0381101 | 160 | 175 | 170 | 9.5 | 14 | K0381601 | |
| 115 | 127.2 | 121 | 7.2 | 12 | K0381150 | 160 | 175 | 167.6 | 10.2 | 16 | K0381602 | |
| 120 | 132.2 | 126 | 7.2 | 12 | K0381200 | 165 | 180 | 175 | 9.5 | 14 | K0381650 | |
| 120 | 135 | 130 | 9.5 | 14 | K0381201 | 170 | 180.6 | 174 | 5.3 | 7 | K0381700 | |
| 125 | 133 | 130.8 | 5.3 | 7 | K0381250 | 170 | 182.2 | 176 | 7.7 | 12 | K0381701 | |
| 125 | 137.2 | 131 | 7.7 | 12 | K0381251 | 170 | 185 | 180 | 9.5 | 14 | K0381702 | |
| 125 | 140 | 132.6 | 10.2 | 16 | K0381252 | 177 | 192 | 187 | 9.5 | 14 | K0381770 | |
| 128 | 143 | 138 | 9.5 | 14 | K0381280 | 180 | 195 | 190 | 9.5 | 14 | K0381800 | |
| 130 | 142.2 | 136 | 7.2 | 12 | K0381300 | 180 | 200 | 190 | 10.2 | 18 | K0381801 | |
| 130 | 145 | 137.6 | 10.2 | 16 | K0381301 | 185 | 200 | 192.6 | 10.2 | 16 | K0381850 | |
| 132 | 144.2 | 138 | 7.2 | 12 | K0381320 | 185 | 205 | 195 | 10.2 | 16 | K0381851 | |
| 135 | 150 | 145 | 9.5 | 14 | K0381350 | 190 | 205 | 200.0 | 9.5 | 14.0 | K0381900 | |
| 140 | 152.2 | 146 | 7.7 | 12 | K0381400 | 190 | 210 | 202.5 | 10.2 | 16.0 | K0381901 | |
| 140 | 155 | 150 | 9.5 | 14 | K0381401 | 200 | 208.6 | 203.0 | 5.3 | 7.0 | K0382000 | |
| 145 | 153.6 | 148 | 5.3 | 7 | K0381450 | 200 | 215 | 210.0 | 9.5 | 14.0 | K0382001 | |
| 145 | 160 | 155 | 7.7 | 7 | K0381451 | 200 | 220 | 210.0 | 10.2 | 18.0 | K0382002 | |
| 150 | 162.2 | 156 | 7.7 | 12 | K0381500 | 205 | 213.6 | 210.0 | 5.3 | 7.0 | K0382050 | |
| 150 | 165 | 158 | 7.2 | 12 | K0381501 | 205 | 220 | 215.0 | 9.5 | 14.0 | K0382051 | |
| 150 | 166 | 161 | 8 | 12 | K0381502 | 210 | 225 | 220.0 | 9.5 | 14.0 | K0382100 | |
| 155 | 163 | 160.5 | 5 | 8 | K0381550 | 210 | 226 | 221.0 | 9.0 | 12.0 | K0382101 | |
| 155 | 167.2 | 161 | 7.7 | 12 | K0381551 | 210 | 230 | 220.0 | 10.2 | 18.0 | K0382102 | |
| 155 | 175 | 165 | 10.2 | 18 | K0381552 | 212 | 232 | 225.5 | 12.5 | 18.0 | K0382120 |
| Фd1 | ФD1 | ФD2 | L1 | L2 | PART No. | Фd1 | ФD1 | ФD2 | L1 | L2 | PART No. | |
| 220 | 235 | 227.6 | 10.2 | 16.0 | K0382200 | 280 | 300 | 290.0 | 10.2 | 15.0 | K0382801 | |
| 220 | 240 | 230.0 | 18.0 | 18.0 | K0382201 | 285 | 305 | 298.5 | 12.5 | 18.0 | K0382850 | |
| 220 | 240 | 233.5 | 12.5 | 18.0 | K0382202 | 288 | 308 | 301.5 | 10.2 | 15.0 | K0382880 | |
| 225 | 240 | 235.0 | 9.5 | 14.0 | K0382250 | 290 | 310 | 303.5 | 12.5 | 18.0 | K0382900 | |
| 225 | 245 | 235.0 | 10.2 | 18.0 | K0382251 | 295 | 315 | 308.5 | 12.5 | 18.0 | K0382950 | |
| 230 | 245 | 240.0 | 9.5 | 14.0 | K0382300 | 300 | 320 | 313.5 | 12.5 | 18.0 | K0383000 | |
| 230 | 246 | 240.7 | 7.5 | 12.0 | K0382301 | 305 | 325 | 318.5 | 12.5 | 18.0 | K0383050 | |
| 230 | 250 | 240.0 | 10.2 | 18.0 | K0382302 | 320 | 340 | 330.0 | 10.2 | 18.0 | K0383200 | |
| 235 | 255 | 245.0 | 10.2 | 18.0 | K0382350 | 325 | 345 | 335.0 | 10.2 | 18.0 | K0383250 | |
| 240 | 255 | 250.0 | 9.5 | 14.0 | K0382400 | 330 | 346 | 340.7 | 7.5 | 12.0 | K0383300 | |
| 240 | 260 | 250.0 | 10.2 | 18.0 | K0382401 | 335 | 355 | 345.0 | 10.2 | 18.0 | K0383350 | |
| 240 | 260 | 253.5 | 12.5 | 18.0 | K0382402 | 340 | 360 | 350.0 | 10.2 | 18.0 | K0383400 | |
| 245 | 265 | 258.5 | 12.5 | 18.0 | K0382450 | 350 | 370 | 360.0 | 10.2 | 18.0 | K0383500 | |
| 250 | 270 | 260.0 | 10.2 | 18.0 | K0382500 | 355 | 375 | 365.0 | 10.2 | 18.0 | K0383550 | |
| 250 | 270 | 263.0 | 12.5 | 18.0 | K0382501 | 360 | 380 | 370.0 | 10.2 | 18.0 | K0383600 | |
| 255 | 270 | 265.0 | 9.5 | 14.0 | K0382550 | 370 | 390 | 383.5 | 12.5 | 18.0 | K0383700 | |
| 260 | 275 | 270.0 | 9.5 | 14.0 | K0382600 | 370 | 390 | 380.0 | 10.2 | 18.0 | K0383701 | |
| 260 | 280 | 270.5 | 10.2 | 18.0 | K0382601 | 380 | 400 | 393.5 | 12.5 | 18.0 | K0383800 | |
| 265 | 280 | 272.6 | 10.2 | 16.0 | K0382650 | 395 | 415 | 405.0 | 10.2 | 18.0 | K0383950 | |
| 265 | 285 | 275.0 | 10.2 | 15.0 | K0382651 | 400 | 420 | 410.0 | 10.2 | 18.0 | K0384000 | |
| 270 | 278.6 | 273.0 | 5.3 | 7.0 | K0382700 | 415 | 435 | 425.0 | 10.2 | 18.0 | K0384150 | |
| 270 | 286 | 280.7 | 7.5 | 12.0 | K0382701 | 455 | 475 | 465.0 | 10.2 | 18.0 | K0384550 | |
| 275 | 295 | 285.0 | 10.2 | 18.0 | K0382750 | 470 | 490 | 480.0 | 10.2 | 18.0 | K0384700 | |
| 280 | 295 | 290.0 | 9.5 | 14.0 | K0382800 |
